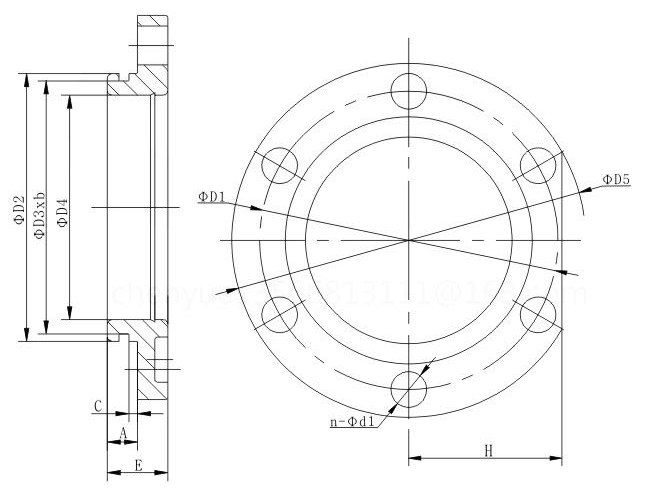

RV SHAFT COVER
Time：2023-04-14
View volume：1305
減速機型号 | A | D1 | D2 | D3 | D4 | D5 |
C |
b |
E |
H |
n-Φd1 |
Φ | Φ | Φ | Φ | Φ | |||||||
RV040 | 6 | 57 | 47 | 43.6 | 35 | 67 | 1.8 | 2.3 | 11 | 31 | 6-Φ6.6 |
RV050 | 7 | 65 | 55 | 51.6 | 47 | 76 | 2.3 | 2.3 | 13 | 33 | 6-Φ6.6 |
RV063 | 7 | 75 | 62 | 58.6 | 52 | 89 | 2.3 | 2.3 | 14 | 38.5 | 6-Φ9 |
RV075/090 | 7 | 82 | 68 | 64.6 | 60 | 96 | 2.3 | 2.3 | 15 | 43.5 | 6-Φ9 |
RV105/130 | 7 | 94 | 80 | 76.6 | 68 | 110 | 2.3 | 2.3 | 16 | 53 | 6-Φ9 |
