RV CONNECTION FLANGE
Time：2023-04-14
View volume：1296

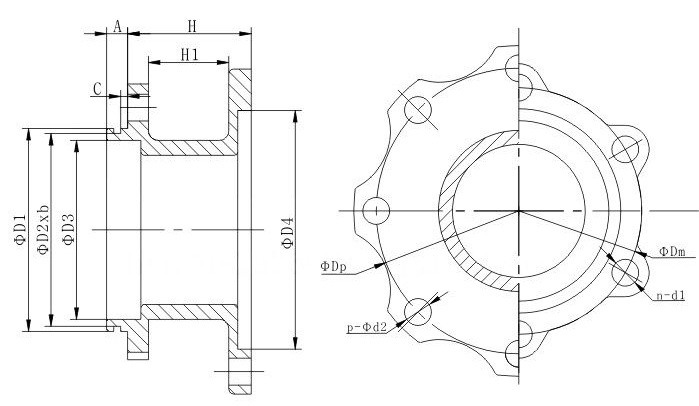

第一級型号 | 第二級型号 | H | DM | D1 | D2 | b | c | D3 | D4 | Dp | A | H1 | n-Φd1 | P-Φd2 |
Φ | Φ | Φ | Φ | Φ | Φ | |||||||||
RV025 | RV030 | 36.5 | 45 | 37 | 34 | 2.1 | 2 | 30 | 45 | 55 | 6 | 22.5 | 4-Φ7 | 3-Φ7 |
RV030 | RV040 | 41 | 57 | 47 | 43.6 | 2.3 | 1.8 | 35 | 55 | 65 | 6 | 28 | 6-Φ7 | 4-Φ7 |
RV050 | 38 | 65 | 55 | 51.6 | 2.3 | 2.3 | 47 | 55 | 65 | 7 | 22.5 | 6-Φ7 | 4-Φ7 | |
RV063 | 40 | 75 | 62 | 58.6 | 2.3 | 2.3 | 52 | 55 | 65 | 7 | 25 | 6-Φ9 | 4-Φ7 | |
RV040 | RV050 | 41 | 65 | 55 | 51.6 | 2.3 | 2.3 | 47 | 60 | 75 | 7 | 25 | 6-Φ7 | 4-Φ7 |
RV050A | 42.5 | 65 | 55 | 51.6 | 2.3 | 2.3 | 47 | 60 | 75 | 7 | 25 | 6-Φ7 | 4-Φ7 | |
RV063 | 41 | 75 | 62 | 58.6 | 2.3 | 2.3 | 52 | 60 | 75 | 7 | 25 | 6-Φ9 | 4-Φ7 | |
RV075/90 | 40 | 82 | 68 | 64.6 | 2.3 | 2.3 | 60 | 60 | 75 | 7 | 24 | 6-Φ9 | 4-Φ7 | |
RV075/90U | 30 | 82 | 68 | 64.6 | 2.3 | 2.3 | 60 | 60 | 75 | 7 | 13.5 | 6-9U | 4-7U | |
RV050 | RV075/90 | 45 | 82 | 68 | 64.6 | 2.3 | 2.3 | 60 | 70 | 85 | 7 | 25 | 6-Φ9 | 4-Φ9 |
RV063 | RV075/90 | 41 | 82 | 68 | 64.6 | 2.3 | 2.3 | 60 | 80 | 95 | 7 | 27 | 6-Φ9 | 8-Φ9 |
