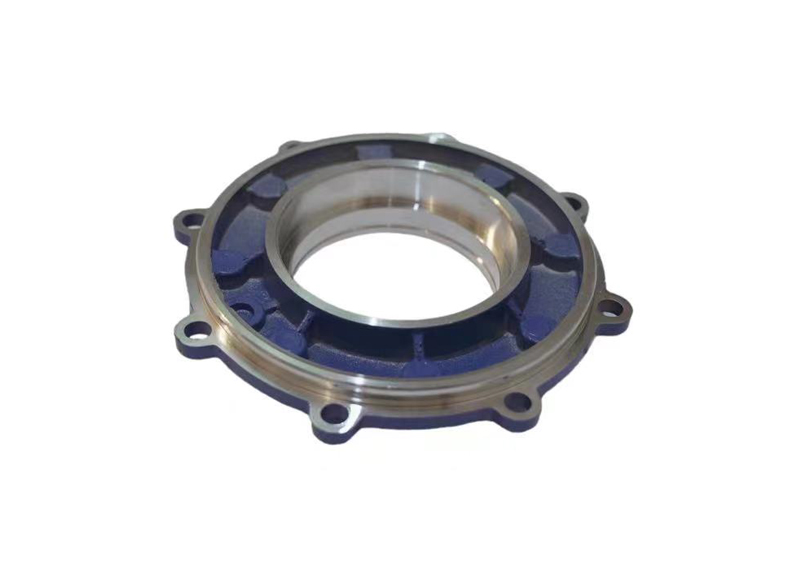

RW端蓋
時間：2023-04-14
浏覽量：1271

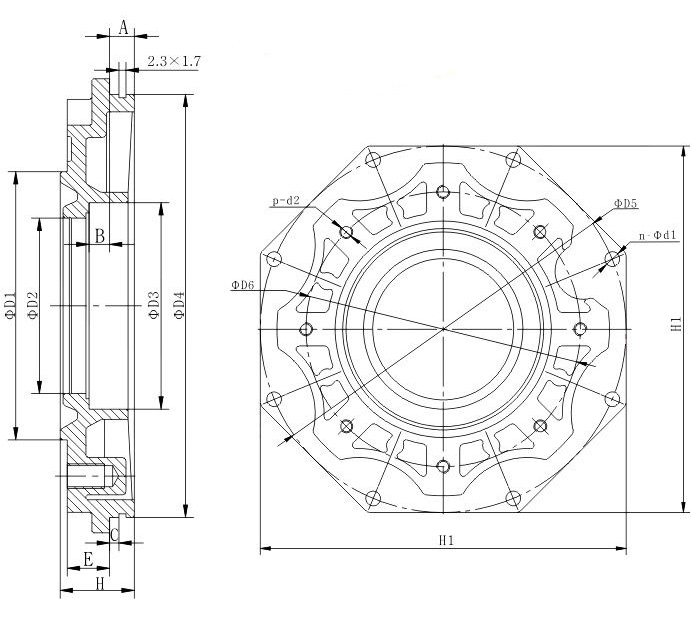

型号 | A | B | C | D1 | D2 | D3 | D4 | D5 | D6 | E | H | ΦDa | M | d |
Φ | Φ | Φ | Φ | Φ | Φ | Φ | ||||||||
RV040 | 11 | 1 | 2.5 | 60 | 40 | 55 | 68 | 77 | 75 | 8.5 | 22 | 87 | 4-M6 | 4-Φ6.5 |
RV050 | 7.5 | 4.5 | 2.8 | 70 | 62 | 68 | 85 | 95 | 85 | 13.5 | 23.5 | 107 | 4-M8 | 8-Φ7 |
RV063 | 7 | 5.5 | 2.5 | 80 | 65 | 75 | 110 | 123 | 95 | 14.5 | 26.5 | 136 | 8-Φ9 | 8-M8 |
RV075 | 8 | 4 | 2.8 | 95 | 72 | 80 | 135 | 147 | 115 | 15 | 30 | 161 | 8-Φ9 | 8-M8 |
RV090 | 8 | 6 | 2.8 | 110 | 85 | 95 | 165 | 180 | 130 | 16 | 30 | 195 | 8-Φ9 | 8-M10 |
RV105 | 12 | 10.5 | 4.5 | 130 | 85 | 100 | 205 | 220 | 165 | 20.5 | 35.5 | 220 | 8-Φ9 | 8-M10 |
