RV CIRCULAR OUTPUT FLANGE
Time：2023-04-14
View volume：1271

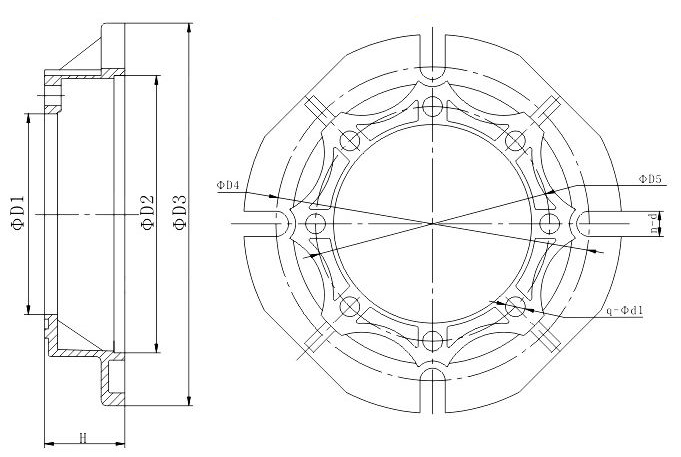

通用(yòng)代号 | 減速機型号 | H | D1 | D2 | D3 | D4 | D5 | n-d | q-Φd1 |
Φ | Φ | Φ | Φ | Φ | |||||
FH | RV030 | 55.5 | 55 | 60 | 110 | 87 | 65 | 4-Φ9 | 4-Φ7 |
FE | RV063 | 27.5 | 80 | 110 | 160 | 130 | 95 | 4-11 | 8-Φ9 |
FB | RV075 | 33 | 95 | 110 | 160 | 130 | 115 | 4-11 | 4-Φ9 |
FA | RV090 | 44 | 110 | 152 | 210 | 175 | 130 | 4-14 | 8-Φ11 |
FC | 43 | 110 | 130 | 200 | 165 | 130 | 4-11 | 8-Φ11 | |
FD | 84 | 110 | 152 | 210 | 175 | 130 | 4-14 | 8-Φ11 | |
FG | 46 | 110 | 152 | 210 | 176 | 130 | 8-Φ12.5 | 8-Φ11 | |
FH | 84 | 110 | 152 | 210 | 176 | 130 | 8-Φ12.5 | 8-Φ11 |
