RV SQUARE OUTPUT FLANGE
Time：2023-04-14
View volume：1284

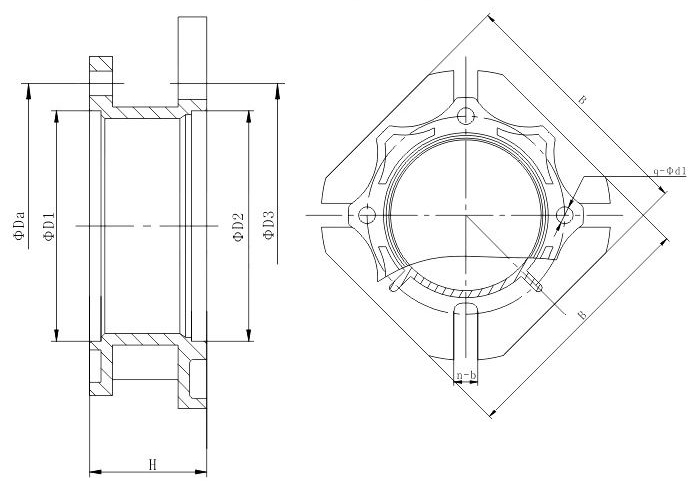

通用(yòng)代号 | 減速機型号 | H | Da | D1 | D2 | D3 | B | n-b | q-Φd1 |
Φ | Φ | Φ | Φ | ||||||
FA | RV025 | 22.5 | 55 | 45 | 40 | 55 | 70 | 4-6.5 | 3-M6 |
RV030 | 25.5 | 65 | 55 | 50 | 68 | 70 | 4-6.5 | 4-Φ6.6 | |
RV040 | 30.5 | 75 | 60 | 60 | 75 | 95 | 4-9 | 4-Φ6.6 | |
RV050 | 46.5 | 85 | 70 | 70 | 85 | 110 | 4-11 | 4-Φ9 | |
RV063 | 29 | 95 | 80 | 115 | 150 | 142 | 4-11 | 8-Φ9 | |
RV075 | 54 | 115 | 95 | 130 | 165 | 170 | 4-14 | 8-Φ9 | |
FB | RV040 | 60..5 | 75 | 60 | 60 | 75 | 95 | 4-9 | 4-Φ6.6 |
RV050 | 76.5 | 70 | 70 | 85 | 85 | 110 | 4-11 | 4-Φ9 | |
RV063 | 59 | 95 | 80 | 115 | 150 | 142 | 4-11 | 8-Φ9 | |
FC* | RV040 | 35.5 | 75 | 60 | 60 | 75 | 95 | 4-9 | 4-Φ6.6 |
FG | RV040 | 28 | 75 | 60 | 50 | 74.5 | 94 | 4-9 | 4-Φ6.6 |
