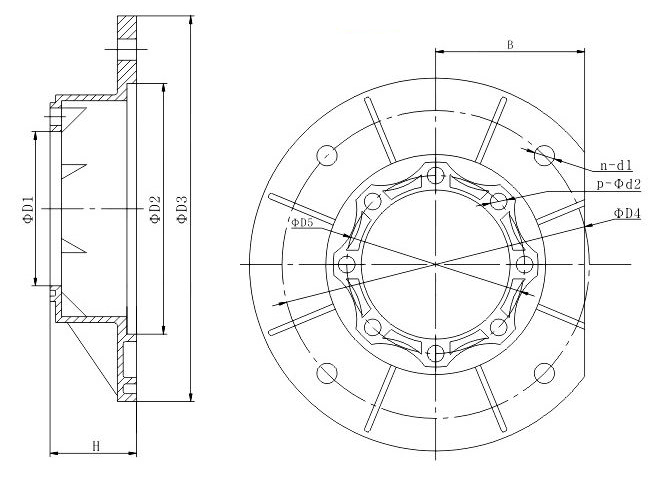

RV SEMICIRCULAR OUTPUT FLANGE
Time：2023-04-14
View volume：1277
通用(yòng)代碼 | 減速機型号 | H | D1 | D2 | D3 | D4 | D5 | B | n-Φd1 | P-d2 |
Φ | Φ | Φ | Φ | Φ | ||||||
FC-1 | RV040 | 40 | 60 | 95 | 140 | 115 | 75 | 56 | 4-Φ9.5 | 4-Φ6.6 |
FD | 21.5 | 60 | 80 | 120 | 100 | 75 | 50 | 4-9Φ | 4-Φ6.6 | |
FC-1 | RV050 | 44 | 70 | 110 | 160 | 130 | 85 | 66 | 4-Φ9.5 | 4-Φ9 |
FC | 45.5 | 70 | 110 | 160 | 130 | 85 | 66 | 4-Φ9.5 | 4-Φ9 | |
FD | 28.5 | 70 | 95 | 140 | 115 | 85 | 60 | 4-11Φ | 4-Φ9 | |
FC | RV063 | 45 | 80 | 130 | 200 | 165 | 95 | 80 | 4-Φ11 | 8-Φ9 |
FD | 54 | 80 | 130 | 200 | 165 | 95 | 80 | 4-Φ11 | 8-Φ9 | |
FB | RV090 | 55 | 110 | 180 | 250 | 215 | 130 | 105 | 4-14Φ | 8-Φ11 |
